nickel sheets

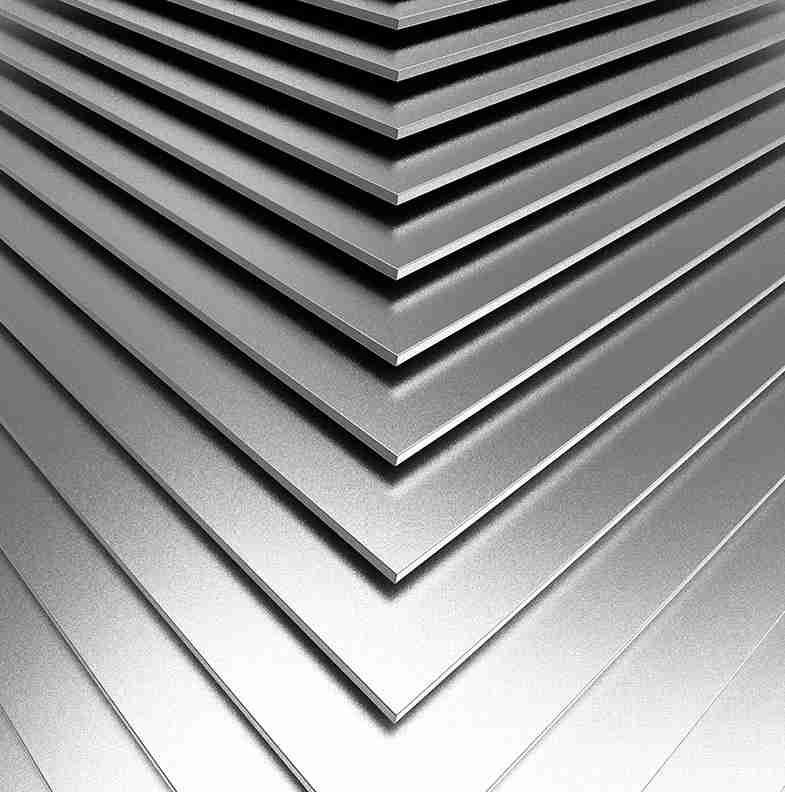

NICKEL SHEETS

We stock a large and varied inventory of cold rolled nickel sheets with 3.0 mm thickness and hot rolled nickel plates with thickness up to 50 mm. Our offer includes heat-resistant sheets and plates (Inconel™, Incoloy™) as well as corrosion-resistant sheets and plates (Hastelloy™).

We provide nickel sheets and nickel plates in any dimensions. We can also form nickel pipes as per your technical specifications.

We adjust our operations to efficiently fulfill client’s needs and requirements.

In case of regular cooperation, we focus on keeping our stock levels sufficient to fulfill clients’ orders and provide timely delivery of replacement and wear items. We guarantee fast and flexible deliveries carried out with the just-in-time inventory management strategy.



Nickel sheets and nickel plates standards

  • all nickel sheets and plates we offer conform to Werkstoff/DIN and UNS standards;
  • our nickel products – depending on alloy – conform to United Kingdom BS and AFNOR standards;
  • additionally, we supply nickel sheets and nickel plates certified for various applications, including those for aviation industry (AMS), high-pressure purposes (ASME) and conforming to DIN, SEW, VdTÜV, BS and QQ standards;

Usage of nickel sheets and plates

  • structural elements of waste incinerators and gas desulphurisation systems: intake nozzles, silencers, chimney liners;
  • in pulp and paper industry as chlorine injection nozzles, bleach root dips or pipeline systems;
  • offshore drilling and shipbuilding industry uses nickel sheets to build condensers, pipelines and fittings, elements of ship equipment including valves, fire protection systems, pumps and shafts;
  • automotive industry utilizes them as diesel engine components, exhaust gas cleaning systems;

We provide product and material consulting. Let us know if you need any help!

Do you have questions? We have the answers!

NICKEL SHEETS, ALLOY 200/201

types / signs specification / standards dimensions
Werkstoff / DIN

2.4066 / Ni 99.2

2.4068 / LC-Ni99

DIN 17750 / VdTuV 345 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N02200 / N02201 ASTM B162 / ASME SB162 / AMS 5553
ISO Ni 99.00 / LC-Ni 99.0
United Kingdom BS NA 11/ NA 12 BS 3072



NICKEL SHEETS, ALLOY 330

types / signs specification / standards dimensions
Werkstoff / DIN 1.4864 / X12NiCrSi36-16
1.4862 / X8NiCrSi38-18
SEW 310/470 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000 [mm]
UNS N08330
United Kingdom BS NA 17 BS 3072
AFNOR Z12NCS35.16 / Z12NCS37.18



ALLOY 400

types / signs specification / standards dimensions
Werkstoff / DIN 2.4360 / NiCu30Fe DIN 17750 / VdTuV 263 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N04400 ASTM B127 / ASME SB127 / SAE/AMS 4544 / QQ-N-281 Form 4.6
ISO NiCu30 6208
United Kingdom BS NA 12 BS 3072
AFNOR NU 30



ALLOY 600

types / signs specification / standards dimensions
Werkstoff / DIN 2.4816 / NiCr15Fe DIN EN 10095 / DIN 177520 / VdTuV 305 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N06600 ASTM B168 / ASME SB168 / AMS 5540
ISO NiCr15Fe8
United Kingdom BS NA 14 BS 3072
AFNOR NC15Fe



ALLOY 601

types / signs specification / standards dimensions
Werkstoff / DIN 2.4856 / NiCr23Fe DIN EN 10095 / DIN 17750 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N06601 ASTM B168 / ASME SB168 / ASME Code Case 1500 / AMS 5870
ISO NiCr23Fe15Al 6208
United Kingdom BS C23FeA



ALLOY 625

types / signs specification / standards dimensions
Werkstoff / DIN 2.4856 / NiCr22Mo9Nb DIN EN 10095 / DIN 17750 / VdTuV 499 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N06625, Grade 1 ASTM B443 / ASME SB443 / ASME Code Case 1935 / AMS 5599 / AMS 5869
ISO NiCr22Mo9Nb
United Kingdom BS NA 14 BS 3072
AFNOR NC 22 DNb



ALLOY 718

types / signs specification / standards dimensions
Werkstoff / DIN 2.4668 / NiCr19Fe19Nb5Mo3 DIN 17750 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N07718 ASTM B670 / ASME 670 / SAE AMS 5596 5597
ISO NiCr19Nb5Mo3
United Kingdom BS NA 51
AFNOR NC19FeNb



ALLOY 800 H/Ht

type / signs specification / standards dimensions
Werkstoff / DIN 1.4959 / X 8 NiCrAlTi 32-21 DIN EN 10028-7 (10302) / DIN 17460 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N08811 ASTM B409 / ASME SB409



ALLOY 825

types / signs specification / standards dimensions
Werkstoff / DIN 2.4658 / NiCr21Mo DIN 17750 / VdTuV 432/1 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N08825 ASTM B424 / ASME SB424
ISO NiFe30Cr21Mo3
United Kingdom BS NA 16 BS 3072
AFNOR NC21FeDU



ALLOY C-22

types / signs specification / standards dimensions
Werkstoff / DIN 2.4602 / NiCr21Mo14W DIN 17750 / VdTuV 479 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension: max 1000×3000[mm]
UNS N06022 ASTM B575 / ASME SB575 / ASME Code Case 2226, N-621
ISO NiCr21Mo14W3



ALLOY C-276
types / signs specification / standards dimensions
Werkstoff / DIN 2.4819 / NiMo16Cr15W DIN 17750 / VdTuV 400 Cold rolled 0.5-3.0[mm]
Hot rolled 4.0-50[mm]
Sheet dimension:max 1000×3000[mm]
UNS N10276 ASTM B575 / ASME SB575 / ASME Code Case 1924
ISO NiMo16Cr15Fe6W4 6208
AFNOR NC17D
