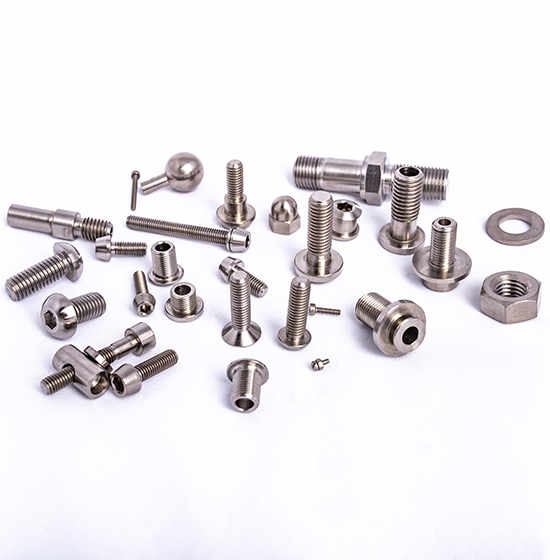

nickel fasteners

NICKEL FASTENERS

Fasteners are hardware elements which, as the name suggests, mechanically bind objects together. Fasteners have to meet damage and pressure resistance requirements, they must have a proper yield strenght vs. tensile strength ratio and most of all – be immune to corrosion and extreme working conditions to assure safety and comfort for device operators and longevity, trouble-free operation of the device.



Fasteners are split into the following groups:



  • screws – they may have different length, thickness, head shape and screw drive type;
  • bolts – threaded fasteners that could be categorized by length, diameter, head shape, type of shank and tip;
  • nuts – used in conjunction with a mating bolt or screw, they come in different thread sizes;
  • washers – are auxiliary elements to bolted joints. They insulate the joined surfaces from bolt, they prevent from working loose and distribute the load of the threaded fastener. They are also a must-have element in applications where the bolt head is smaller in diameter than the actual insertion hole;

We offer countless choices of nickel fasteners such as bolts, screws, washers, hex nuts and threaded rods. All nickel fasteners we sell conform to the DIN standards.

We provide product and material consulting. Let us know if you need any help!

Do you have questions? We have the answers!

NICKEL FASTENERS

description standard available dimensions
bolts cylindrical head bolt DIN 84, ISO 1207, PN 822215 M4-M64 L5-200[mm]
allen socket bolt DIN 912, ISO 4762, PN 82302 M4-M64 L5-200[mm]
allen socket bolt with partially unthreaded shank DIN 931, ISO 4014, PN 82101 M4-M64 L5-200[mm]
allen socket bolt with fully threaded shank DIN 933, ISO 4017, PN 82105 M4-M64 L5-200[mm]
allen socket bolt with fine adjustment thread DIN 961, ISO 86766, PN82105 M4-M64 L5-200[mm]
bolt with conical head and slot drive DIN 963, ISO 2009, PN 82207 M4-M64 L5-200[mm]
nuts hex nut DIN 934, ISO 4032, PN 82144 M4-M64
washers flat washer DIN 125, ISO 7089, PN 82006 M4-M64
two tab locking washer DIN 463, PN 82022 M4-M64
rods threaded rod DIN 975 M4-M100 L1000[mm]
