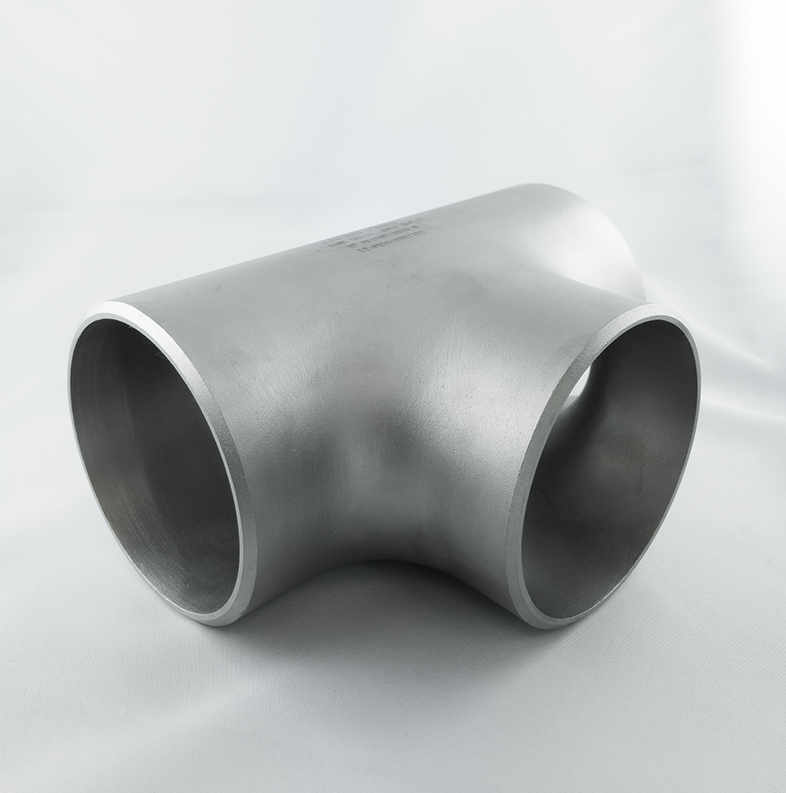

nickel tees

NICKEL TEES

Pipe tee is a pipe fitting, usually T-shaped, used as adapter to connect pipelines with a lateral pipe at a right angle with the line. They are basic pipeline system elements, used in water and sewage infrastructures. Pipe tees have three inlets, which are used as lateral splitters to modify and expand the line by manipulating the conveyance within the system .

Nickel tees may be used for the purpose of transferring the pressurized air, water or any other liquid or gaseous media across the system. Nickel tees can be found in pharmaceutical and chemical applications, in heat exhangers, condensers or in other industrial functions.

We supply equal nickel tees, seamless nickel tees and welded nickel tees in desired dimensions and sizes.

All our nickel tees are made in accordance with ASTM standards and conform to Pressure Equipment Directive – ASME and MSS SP-43.

For our regular customers we focus on keeping our stock levels at a level to sufficiently provide fast delivery of replacement and wear items.



EQUAL NICKEL TEES

types seamless or welded
standards ASTM B366 – ASME SB366
ASME B16.9
ASME B16.25
MSS SP-43
dimensions external diameter: 1/2” – 24″ (21.34-609.5mm)
wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS) (1.65-59.51mm)

We provide product and material consulting. Let us know if you need any help!

Do you have questions? We have the answers!



nickel tee



NPS External diameter Center-to-End
Inlet (A) Outlet (B)
1/2″ 21.3 25 25
3/4″ 26.7 29 29
1″ 33.4 38 38
1 1/4″ 42.2 48 48
1 1/2″ 48.3 57 57
2″ 60.3 64 64
2 1/2″ 73.0 76 76
3″ 88.9 86 86
3 1/2″ 101.6 95 95
4″ 114.3 105 105
5″ 141.3 124 124
6″ 168.0 143 143
8″ 219.1 178 178
10″ 273.0 216 216
12″ 323.8 254 254
14″ 355.6 279 279
16″ 406.40 305 305
18″ 457 343 343
20″ 508 381 381
22″ 559 419 419
24″ 610 432 432



REDUCING TITANIUM TEES

types seamless or welded
standards ASTM B366 – ASME SB366
ASME B16.9
ASME B16.25
MSS SP-43
dimensions external diameter: 1/2” – 24″ (21.34-609.5mm)
wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS)
(1.65-59.51mm)



reducing nickel tee



Pipe dimensions External diameter Center-to-End
large end small end large end small end Run (C) Outlet (M)
1/2″ 1/4″
3/8″
21.3 13.7
17.3
25 25
3/4″ 3/8″
1/2″
26.7 17.3
21.3
29 29
1″ 1/2″
3/4″
33.4 21.3
26.7
38 38
1 1/4″

1/2″

3/4″

1″

42.2 21.3
26.7
33.4
48 48
1 1/2″ 1/2″
3/4″
1″
1 1/4″
48.3 21.3
26.7
33.4
42.2
57 57
2″ 3/4″
1″
1 1/4″
1 1/2″
60.3 26.7
33.4
42.2
48.3
64

44

51

57

60

2 1/2″

1″

1 1/4″

1 1/2″

2″

73.0 33.4
42.2
48.3
60.3
76

57

64

67

70

3″ 1 1/4″
1 1/2″
2″
2 1/2″
88.9 42.2
48.3
60.3
73.0
86

70

73

76

83

3 1/2″ 1 1/2″
2″
2 1/2″
3″
101.6 48.3
60.3
73.0
88.9
95 79
83
89
92
4″

1 1/2″
2″
2 1/2″
3″

3 1/2″

114.3 48.3
60.3
73.0
88.9
101.6
105 86
89
95
98
102
5″ 2″
2 1/2″
3″
3 1/2″
4″
141.3 60.3
73.0
88.9
101.6
114.3
124 105
108
111
114
117
6″ 2 1/2″
3″
3 1/2″
4″
5″
168.0 73.0
88.9
101.6
114.3
141.3
143 121
124
127
130
137
8″ 3 1/2″
4″
5″
6″
219.1 101.6
114.3
141.3
168.3
178 152
156
162
168
10″ 4″
5″
6″
8″
273.0 114.3
141.3
168.3
219.1
216 184
191
194
203
12″ 5″
6″
8″
10″
323.8 141.3
168.3
219.1
273.0
254 216
219
229
241
14″ 6″
8″
10″
12″
355.6 168.3
219.1
273.0
323.8
279 238
248
257
270
16″ 6″
8″
10″
12″
14″
406.4 168.3
219.1
273.0
323.8
355.6
305 264
273
283
295
305
18″ 8″
10″
12″
14″
16″
457.0 219.1
273.0
323.8
355.6
406.4
343 298
308
321
330
330
20″ 8″
10″
12″
16″
14″
18″
508.0 219.1
273.0
323.8
355.6
406.4
457.0
381 324
333
346
356
356
368
22″ 10″
12″
16″
14″
18″
20″
559.0 273.0
323.8
355.6
406.4
457.0
508.0
419 359
371
381
381
394
406
24″ 10″
12″
16″
14″
18″
20″
22″
610.0 273.0
323.8
355.6
406.4
457.0
508.0
559.0
432 384
397
406
406
419
432
432
