TITANIUM

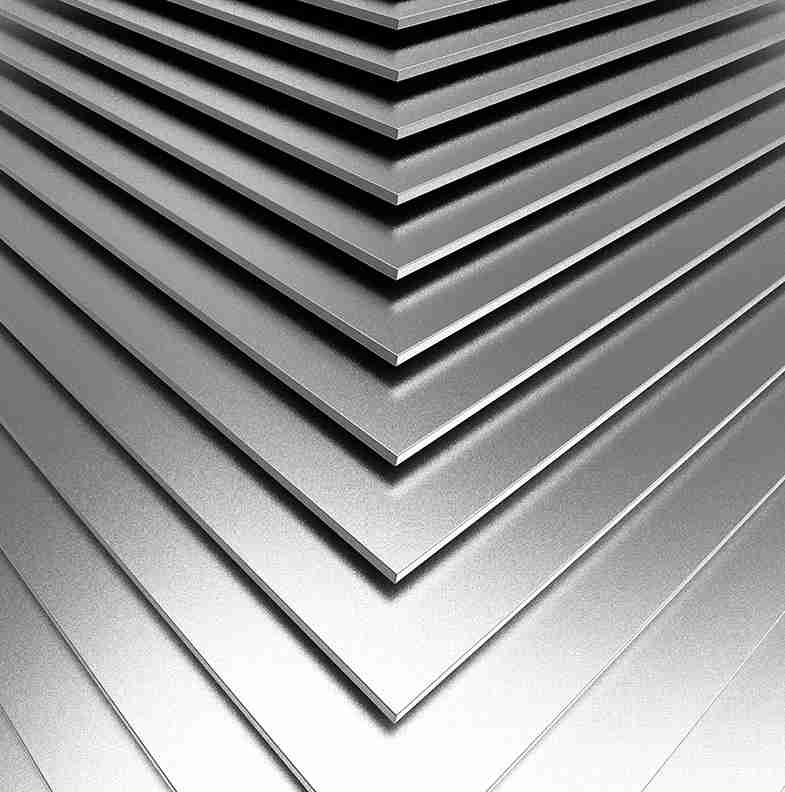

TITANIUM SHEETS
Wolften stocks and supplies titanium plates and sheets of all grades. If necessary, we facilitate in-house water jet cutting services to fulfill individual requirements and provide cut-to-size shapes and products with short lead times.
Usage for titanium plates and sheets
Sheets, similarly to rods and bars, are the most popular titanium products. Laser beam cutting and subsequent mechanical production allows to achieve any demanded shape or form.
Titanium sheets have a wide range of applications in many different areas:
- chemical industry uses them to produce vessels, containers and pipeline elements;
- aviation business utilizes sheets and plates as elements of fuselage, sheathing, honeycomb structures and components of the fuselage skeleton;
- in ship building industry titanium is popular due to its corrosion and brine resistance;
- jewelry industry values them as materials to produce watch cases, wedding rings and similar products;
- military industry utilizes titanium plates as weight-reduced armor;
- in construction they are used as components of light-weight yet strong and durable core materials and stiffeners;
Standards for titanium sheets and plates
All our products are certified to the applicable ASTM specification. Additionally, we provide sheets or plates certified for various applications and to the following standards:
- aviation (AMS),
- medical,
- military industry (MIL) and
- pressure vessel standards (ASME)
We provide product and material consulting. Let us know if you need any help!
Do you have questions? We have the answers!
TITANIUM SHEETS GRADE 1 |
||||
| grades / specification | dimensions | standards | buy online | |
| ASTM | Grade 1 | 0.5-100.0[mm] max 2000[mm] max 6000[mm] |
ASTM B265 ASTM F67 MIL-T-9046-CP-4 ISO 5832-2 |
See our offer |
| DIN | 17850 3.7025 | |||
| UNS | R50250 | |||
| Alloy | CP – Commercial Pure | |||
TITANIUM GRADE 2 |
||||
| grades / specification | dimensions | standards | buy online | |
| ASTM | Grade 2 | 0.5-75.100[mm] max 2000[mm] max 6000[mm] |
ASTM B265 ASTM F67 AMS 4902 MIL-T-9046-CP-3 ISO 5832-2 |
See our offer |
| DIN | 17850 3.7035 | |||
| UNS | R50400 | |||
| Alloy | CP – Commercial Pure | |||
TITANIUM GRADE 3 |
||||
| grades / specification | dimensions | standards | buy online | |
| ASTM | Grade 3 | 0.5-100.0[mm] max 2000[mm] max 6000[mm] |
ASTM B265 ASTM F67 AMS 4900 MIL-T-9046-CP-2 ISO 5832-2 |
See our offer |
| DIN | 17850 3.7055 | |||
| UNS | R50550 | |||
| Alloy | CP – Commercial Pure | |||
TITANIUM GRADE 4 |
||||
| grades / specification | dimensions | standards | buy online | |
| ASTM | Grade 4 | 0.5-100.0[mm] max 2000[mm] max 6000[mm] |
ASTM B265 ASTM F67 AMS 4901 / 4921 MIL-T-9046-CP-1 ISO 5832-2 |
See our offer |
| DIN | 17850 3.7065 | |||
| UNS | R50700 | |||
| Alloy | CP – Commercial Pure | |||
TITANIUM GRADE 5 |
||||
| grades / specification | dimensions | standards | buy online | |
| ASTM | Grade 5 / 5 ELI | 0.5-100.0[mm] max 2000[mm] max 6000[mm] |
ASTM B265 ASTM F136 ASTM F-1472 MIL-T-9047, 9048 AMS-T-9046 AMS 4907, 4911, 4954 AMS 4965, 496 |
See our offer |
| DIN | 17850 3.7165 | |||
| UNS | R56400 | |||
| Alloy | Ti-6Al-4V | |||
