TITANIUM

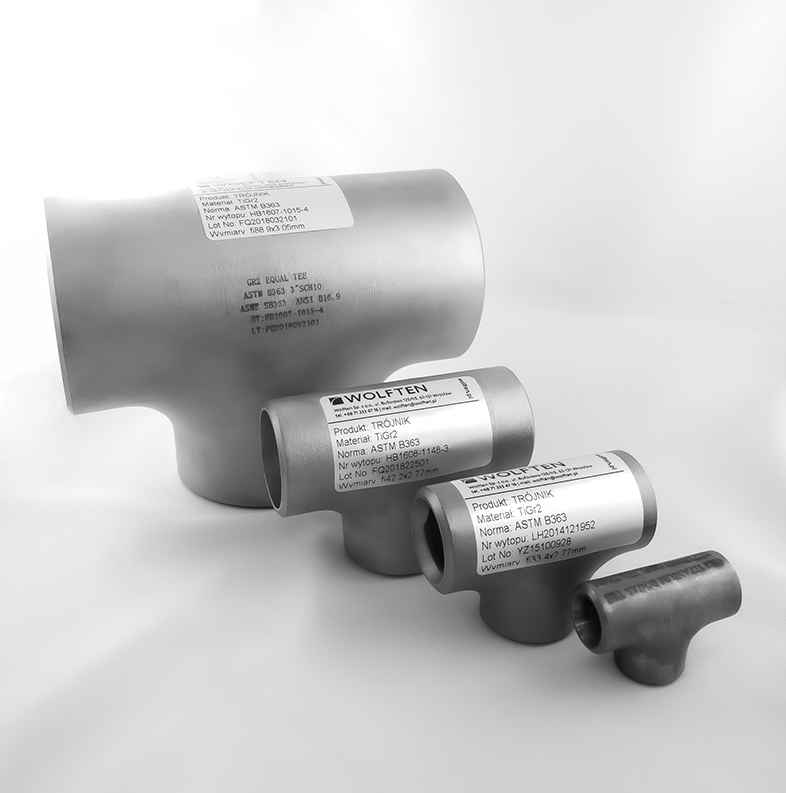

TITANIUM TEES
Pipe tee is a T-shaped pipe fitting with a lateral outlet, very common in pipeline systems. Tees have two outlets to the connection to the main line and are used to connect pipelines with a pipe at a right angle with the line. They are used as adapters to manipulate the conveyance within the piping system.
Our offer consists of equal titanium tees, seamless or welded. All our titanium tees are made in accordance with ASTM/ASME standards, ANSI B16.9 norms and conform to Pressure Equipment Directive – ASME and MSS SP-43.
EQUAL TITANIUM TEES |
|
| type | seamless or welded |
| standards | ASTM B363 – ASME SB363 ASME B16.9 MSS SP-43 |
| dimensions | external diameter 1/2” – 24″ (21.34-609.5mm) wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS) (1.65-59.51mm) |
We provide product and material consulting. Let us know if you need any help!
Do you have questions? We have the answers!
| NPS | External diameter | Center-to-End | |
| Outlet (A) | Outlet (B) | ||
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73.0 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.0 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273.0 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.40 | 305 | 305 |
| 18″ | 457 | 343 | 343 |
| 20″ | 508 | 381 | 381 |
| 22″ | 559 | 419 | 419 |
| 24″ | 610 | 432 | 432 |
REDUCING TITANIUM TEES |
|
| types | welded or seamless |
| standards | ASTM B363 – ASME SB363 ASME B16.9 ASME B16.25 MSS SP-43 |
| dimensions | external diameter: 1/2” – 24″ (21.34-609.5mm) wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS) (1.65-59.51mm) |
| Pipe dimensions | External diameter | Center-to-End | |||
| large outlet | small outlet | large outlet | small outlet | Run (C) | Outlet (M) |
| 1/2″ | 1/4″ 3/8″ |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4″ | 3/8″ 1/2″ |
26.7 | 17.3 21.3 |
29 | 29 |
| 1″ | 1/2″ 3/4″ |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4″ | 1/2″
3/4″ 1″ |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2″ | 1/2″ 3/4″ 1″ 1 1/4″ |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2″ | 3/4″ 1″ 1 1/4″ 1 1/2″ |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44
51 57 60 |
| 2 1/2″ | 1″
1 1/4″ 1 1/2″ 2″ |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57
64 67 70 |
| 3″ | 1 1/4″ 1 1/2″ 2″ 2 1/2″ |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70
73 76 83 |
| 3 1/2″ | 1 1/2″ 2″ 2 1/2″ 3″ |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4″ | 1 1/2″ 2″ 2 1/2″ 3″ 3 1/2″ |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5″ | 2″ 2 1/2″ 3″ 3 1/2″ 4″ |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6″ | 2 1/2″ 3″ 3 1/2″ 4″ 5″ |
168.0 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8″ | 3 1/2″ 4″ 5″ 6″ |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10″ | 4″ 5″ 6″ 8″ |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12″ | 5″ 6″ 8″ 10″ |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14″ | 6″ 8″ 10″ 12″ |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16″ | 6″ 8″ 10″ 12″ 14″ |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18″ | 8″ 10″ 12″ 14″ 16″ |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20″ | 8″ 10″ 12″ 16″ 14″ 18″ |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22″ | 10″ 12″ 16″ 14″ 18″ 20″ |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24″ | 10″ 12″ 16″ 14″ 18″ 20″ 22″ |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |
